Part Number : KR5407

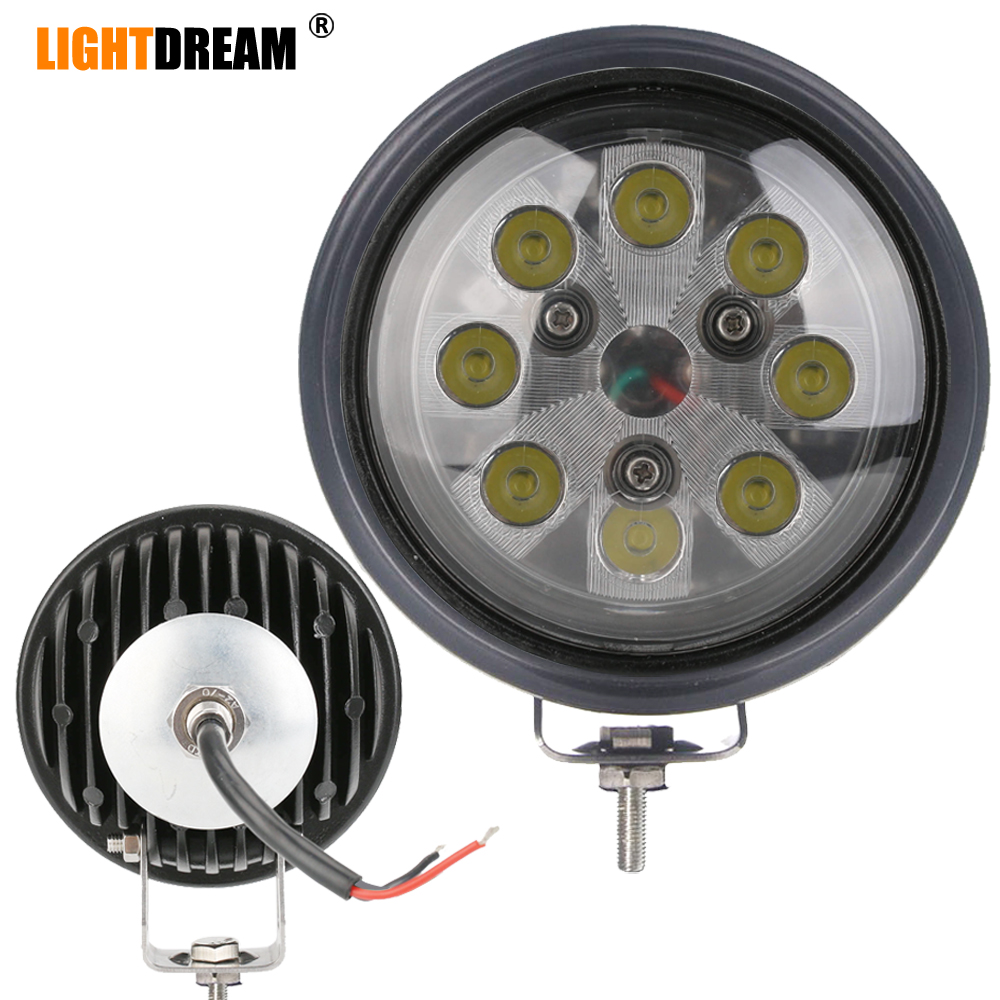

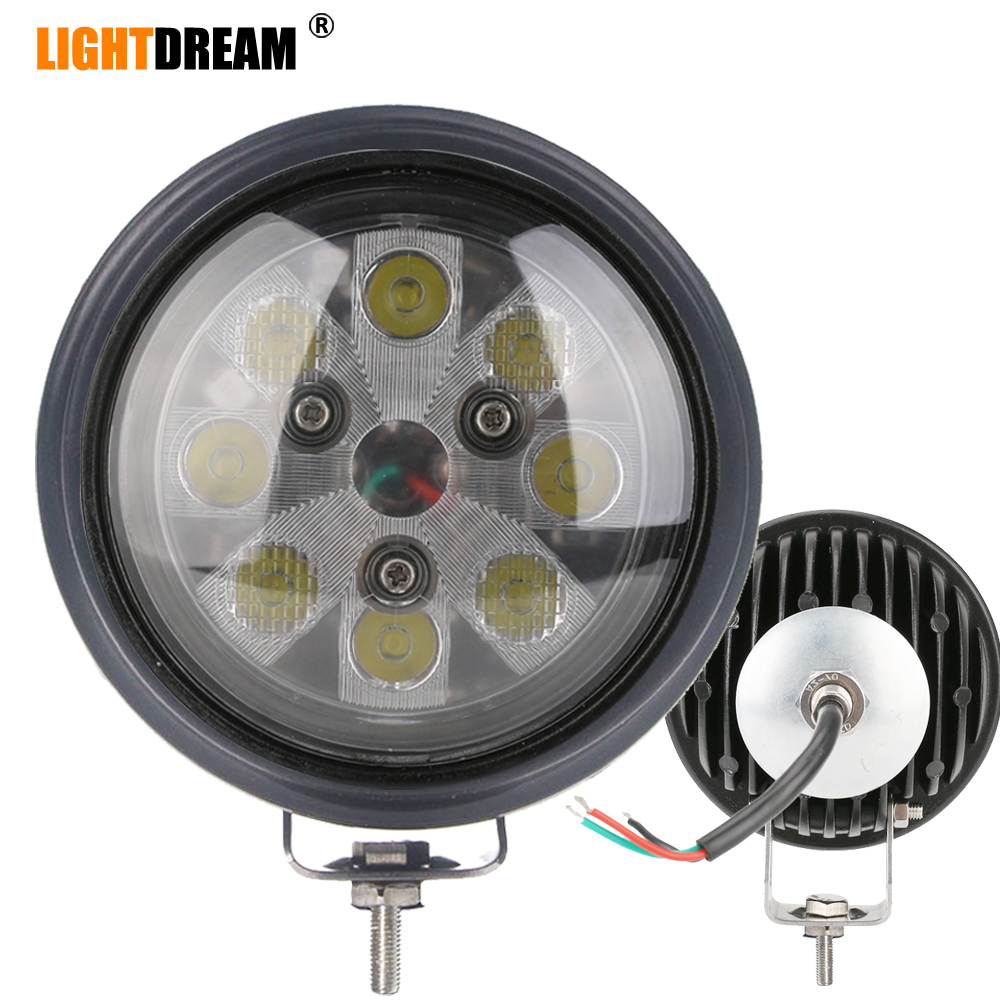

This light has a dual mounting option.
Can be mounted from the Rear of the light or the bottom of the light.
This lamp have Spot Beam / Flood Beam / Trapezoid Beam / High Low Beam option.

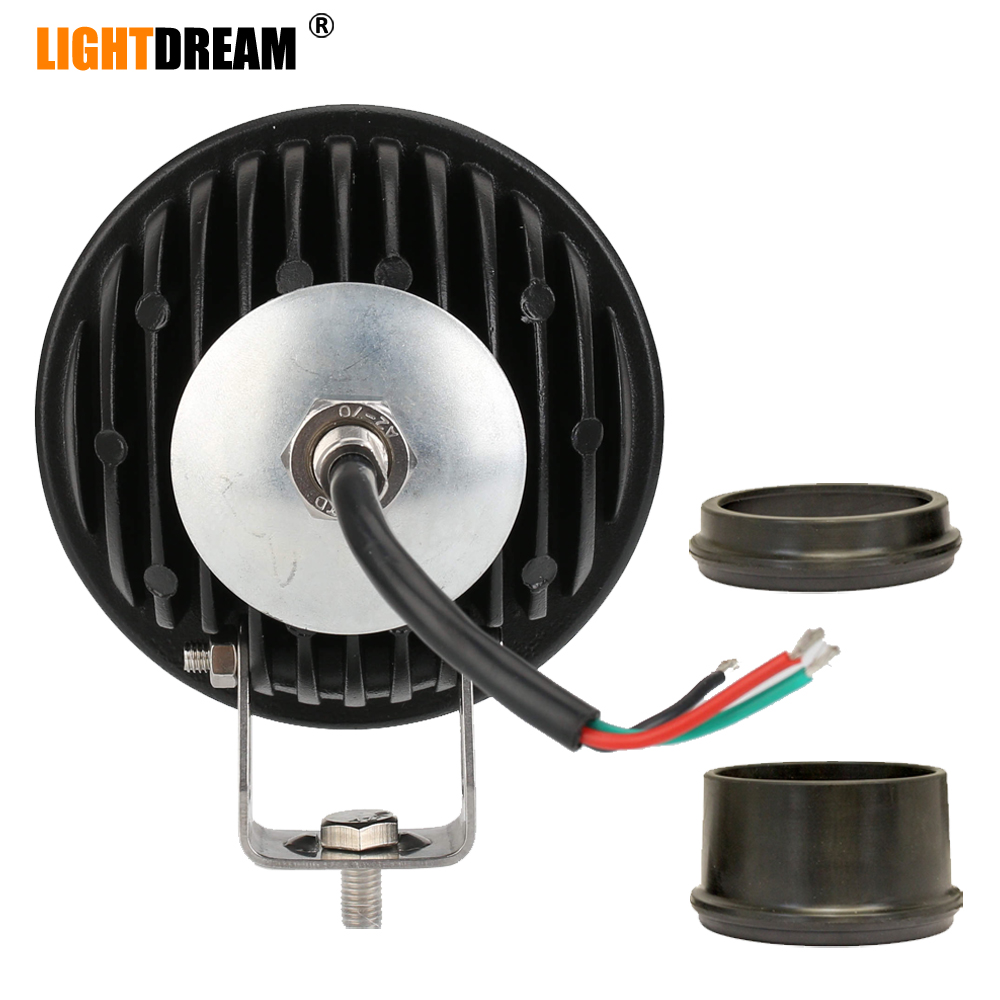

Includes: Stainless Steel Hardware, Long Rubber Bezel, Short Rubber Bezel
Parameters:
• Part Number: KR5407
• 2400 Effective Lumens
• 4.5″ Diameter x 3.5″ Depth
• Trapezoid Beam / Spot Beam / Flood Beam / High Low Beam Pattern Available;
• 8 LED’s;
• 30 Watts; 2.5 Amp Draw
• 12-Volt to 24-Volt Input Voltage
• Manufacturer’s Limited Lifetime Warranty — 1 Year Warranty
Fits – Allis Chalmers / Case/IH / John Deere Tractors
Fits – Allis Chalmers 6000-7000 Series and Tractors
Tractors: 160, 170, 175, 180, 185, 190, 200, 210, 6040, 7000, 7010, 7020, 7040, 7045, 7060, 7080;
6000 Series: 6060, 6070, 6080;
7000 Series: 7030, 7050
Fits – Case 90 Series Tractors
90 Series: 1190, 1290, 1390, 1490, 1690, 2090, 2290, 2390, 2590, 4490, 4690, 4890
Fits – International Harvester 86-88 Series Tractors
86 Series: 186, 786, 886, 986, 1086, 1486, 1586;
88 Series: 3088, 3288, 3488, 3688, 5088, 5288, 5488, 7288, 7488;
30 2+2 Series: 3388, 3588, 3788;
60 2+2 Series: 6388, 6788
Fits – John Deere 10-5000 Series Tractors and Combines
Fits – John Deere 10-2055 Series Tractors
Tractors: 930, 1130, 1630, 2120, 3030, 3130, 3140, 7020, 7520;
Utility Tractors: 820, 920, 1030, 1520, 1530, 1640, 1830, 2040S, 2130, 2840, 3040;
10 Series: 2510, 3010, 4000, 4010;
20 Series: 2520, 3020, 3120, 4020, 4320, 4520, 4620;
30 Series: 4030, 4230, 4430, 4630;
40 Series: 4040, 4240, 4440, 4640, 4840;
50 Series: 4050, 4250, 4450, 4650, 4850;
55 Series: 4055, 4255, 4455, 4555, 4755, 4955;
55 Utility Series: 2355N, 2555, 2755, 2955;
60 Series: 4560, 4760, 4960;
40 4WD Series: 8440, 8640;
50 4WD Series: 8450, 8650, 8850;
2040 Series: 2040, 2140, 2240, 2440,2640, 2940;
2050 Series: 2150, 2350, 2550, 2750, 2950;
2055 Series: 2155, 2255, 2355;
5000 Series: 5200, 5300, 5400, 5500;
Generation II Series: 830, 1530, 2030, 2630, 6030, 8430, 8630;
New Generation Series: 1010, 1020, 1120, 1530, 2010, 2020, 5010, 5020;
Combines: 3300, 4400, 4420, 6600, 6602, 6620, 6622, 7700, 7720, 7721, 8820
Replaces OEM Part Numbers;
Replaces John Deere OEM Part Numbers: RE19079, AR85260,RE19080, AR85262
Replaces Allis Chalmers OEM Part Number: 70269614
Replaces Case OEM Part Number: A145495
Replaces International Harvester OEM Part Number: 131368C92,533063R91, 131508C1, 388945R91
