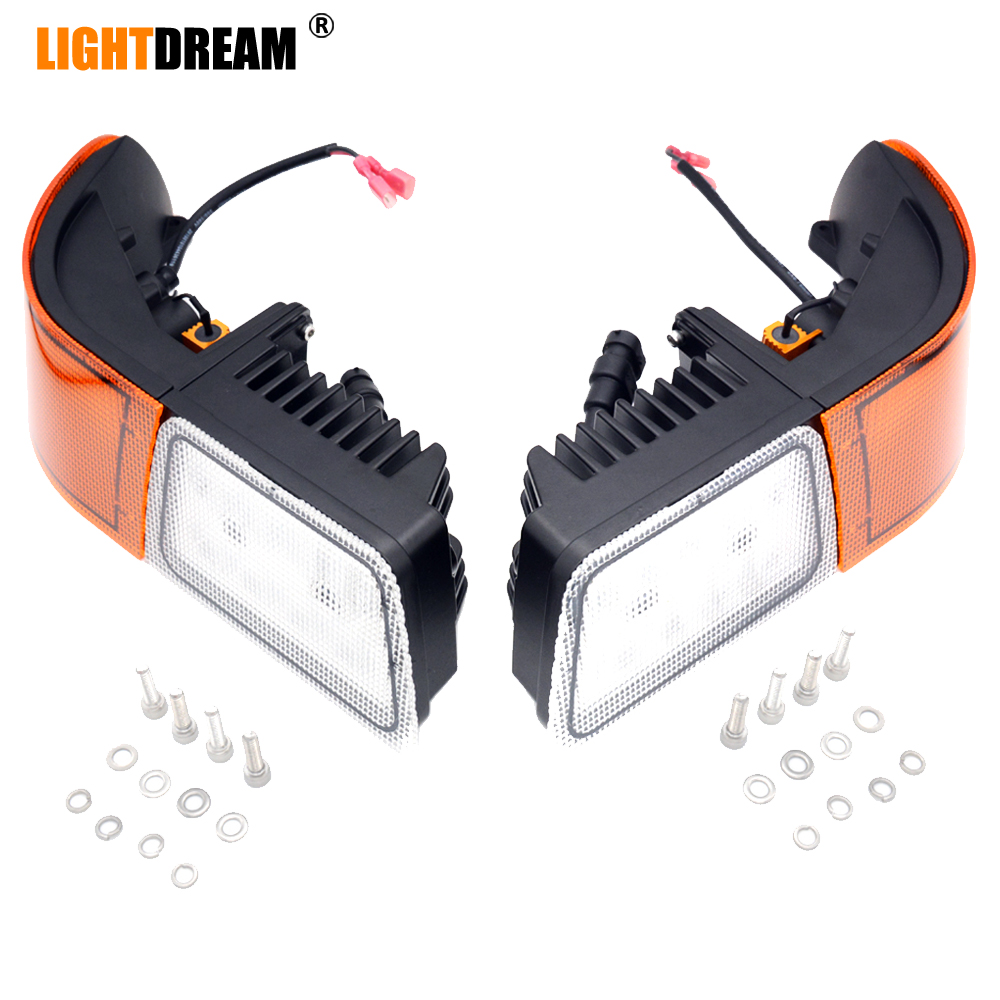

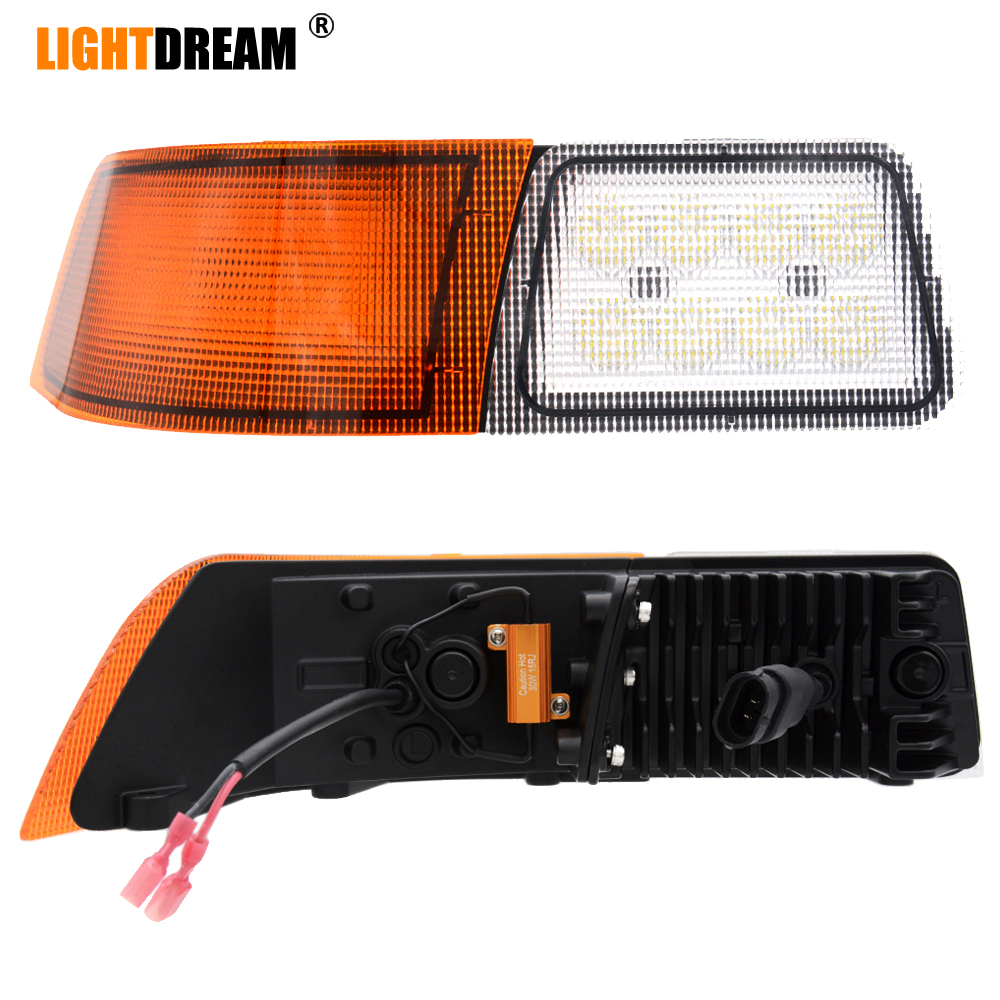

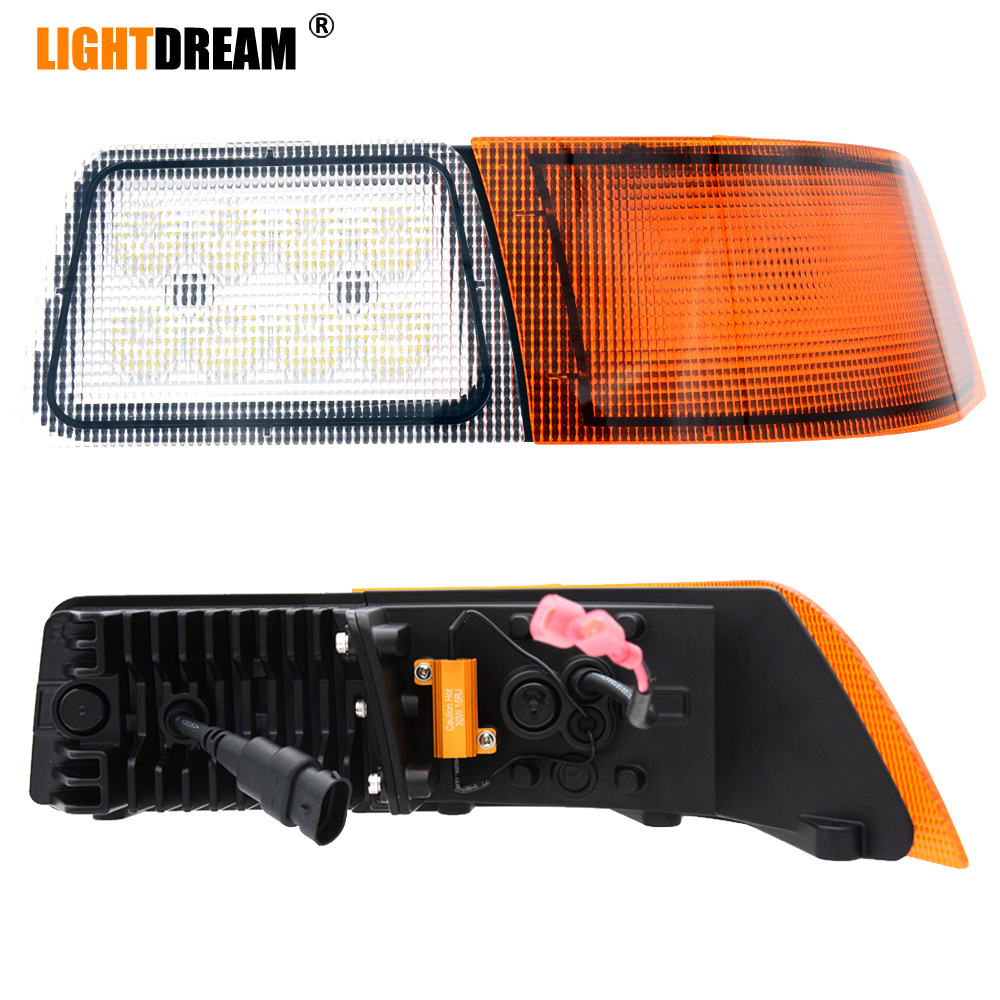

Case IH JX-Magnum-MX-MXM LED LH or RH Amber/White Cab Light KR1364

Part Number: KR1364

Replaces Left-Hand & Right-Hand Front Upper Cab Corner Light with Attached White Work Light

Replaces OEM Part Number:

Case IH OEM Part Numbers：279219A1,279220A1

AGRICULTURE LED LIGHTS, CASE/IH

Parameters:

Part Number : KR1364
Replaces Left-Hand Front Upper Cab Corner Light with Attached White Work Light KR1364L
Replaces Right-Hand Front Upper Cab Corner Light with Attached White Work Light KR1364R
12.8″ x 6.2″ x 3.4″ (W x H x D)
Amber Flashing/Flood Beam Pattern
Amber Light Leds: 24Pcs x 1W/pc; Watts: 14W + 30W Resistor; 1.2 Amp Draw
White Light Leds: 8Pcs x 5W/pc , 3,000 Effective Lumens; 31 Watts; 12V @ 2.6 Amp Draw
12-Volt to 24-Volt Input Voltage
Manufacturer’s Limited Lifetime Warranty — 1 Year Warranty

LED Amber Light to Replace the Left-Hand and Right-Hand Front Upper Cab Corner Light

Fits Case IH JX, Magnum, MX Series Magnum and MXM Series Maxxum tractors, and Patriot Series sprayers.

JX Series: JX70U, JX80U, JX90U, JX100U;
Magnum Series: 180, 190, 210, 215,225, 235, 245, 250, 255, 260, 275, 280, 290, 305, 310, 315, 335, 340, 370, 380;
MX Series Magnum: MX180, MX200, MX210, MX215, MX220, MX230, MX240,MX245, MX255, MX270, MX275, MX285, MX305;
MXM Series Maxxum: MXM120, MXM130, MXM140, MXM155, MXM175, MXM190;
Patriot Series Sprayers: 3230,3330, 3240, 3340, SPX3320

Replace OEM Part Number:
