Description

Parameters:

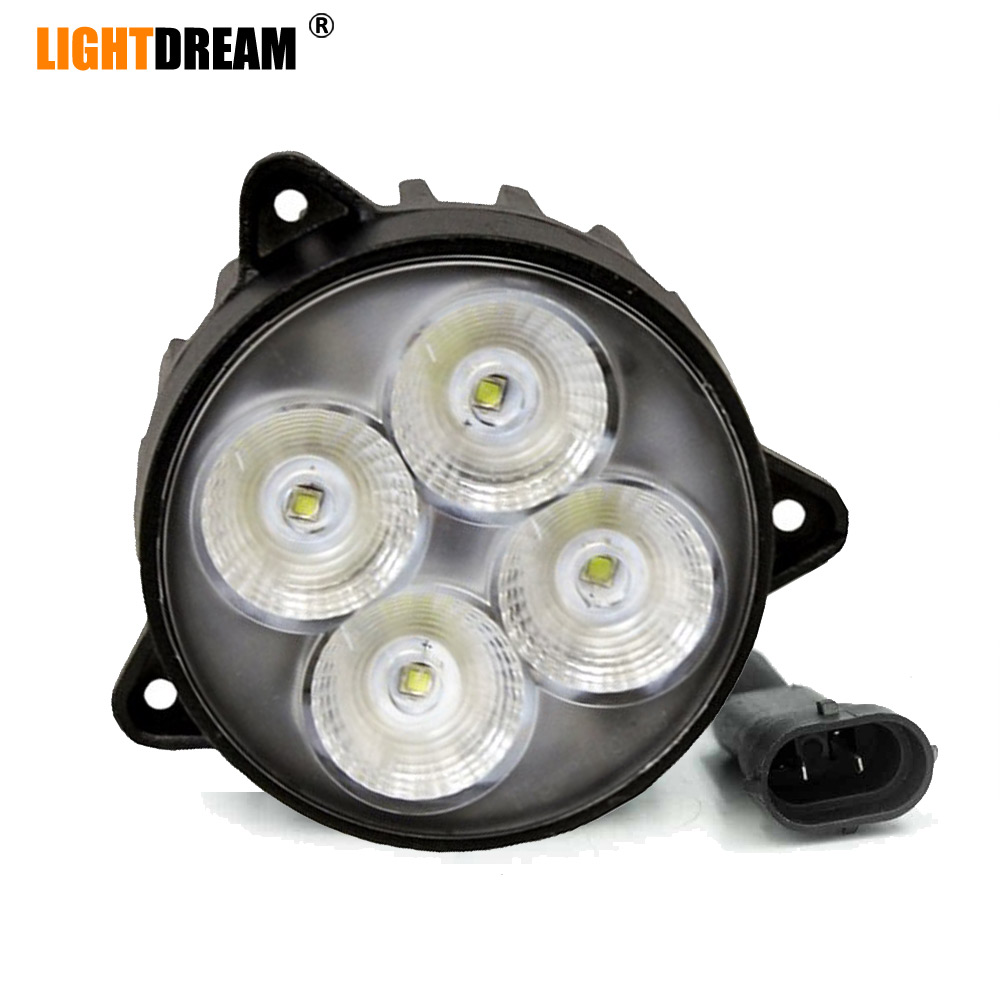

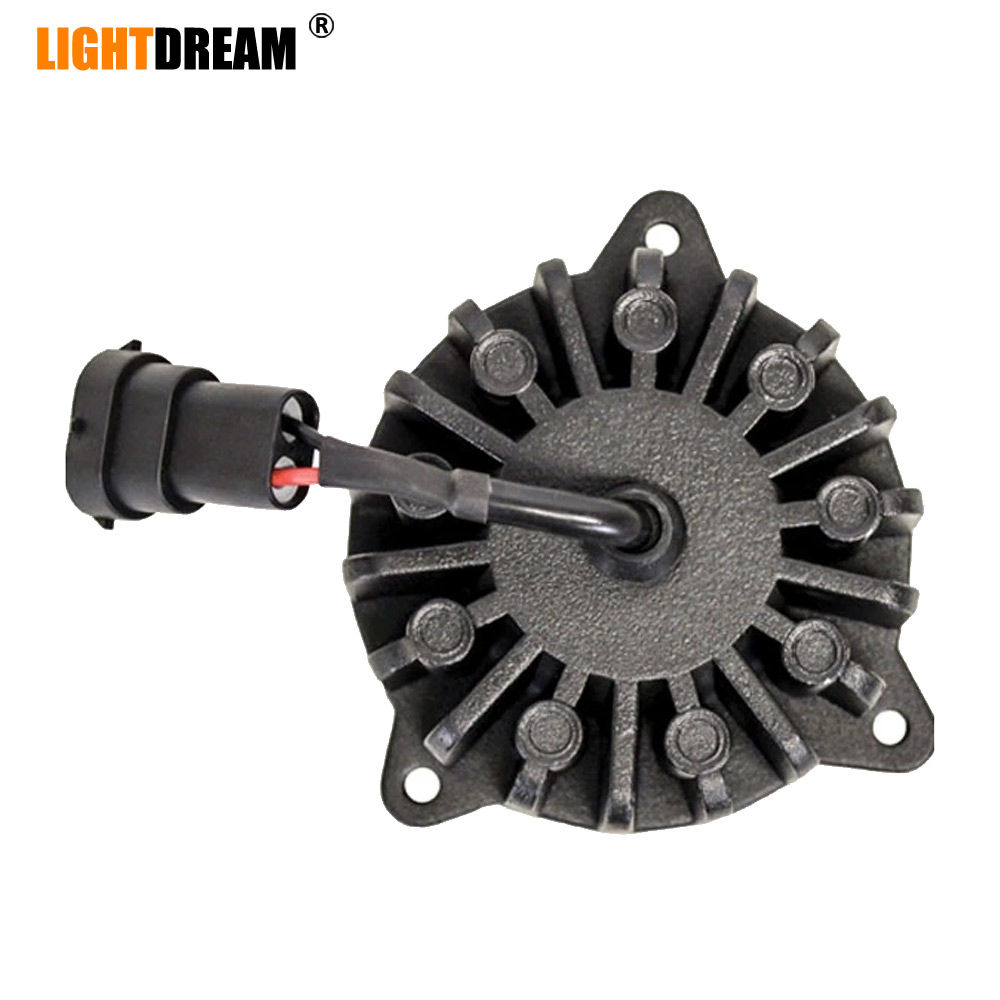

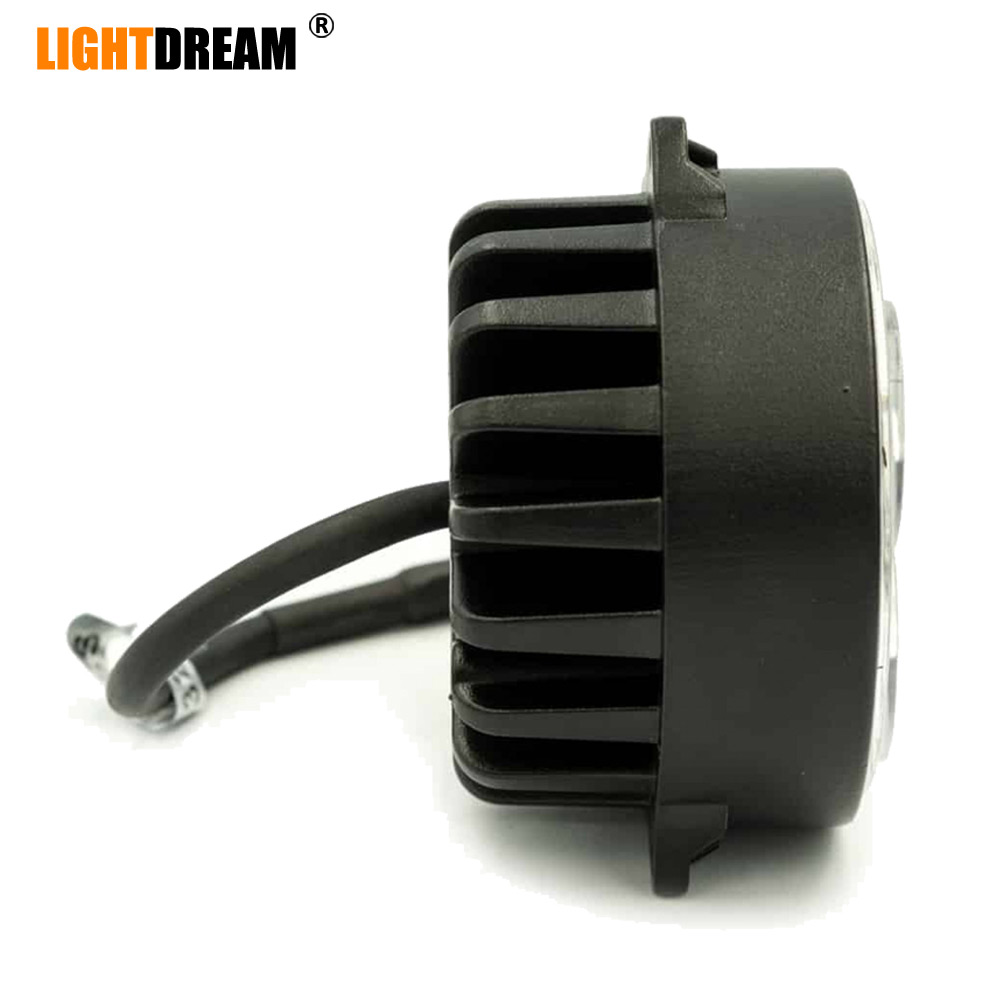

• Part Number: KR3402

• Replaces the Factory Bulb and Housing of the Front Hood Light

• 3200 Effective Lumens

• 3.37″ Diameter x 2″ Depth – Round

• Flood Beam Pattern

• 31 Watts; 2.55 Amp Draw

• 12-Volt to 24-Volt Input Voltage ( DC 10~30V )

• Manufacturer’s Limited Lifetime Warranty — 1 Year

Fits- Case IH / Ford New Holland / John Deere / Challenger

Fits – Case IH Magnum, Puma and Steiger Series Tractors

Magnum Series: 180,190,200,210,215,220,225,235,240,245,250,260,275,280,290,305,310,315, 335,340,370,380,MX215,MX245,MX275,MX305;

Puma Series: 165,170,180,185,195,200,210,215,220,225,230,240;

Steiger 4WD Quadtrac Series: 370, 400, 420, 450, 470, 500, 540, 550,580, 600, 620

Fits – New Holland T8000, TG and TG II Series Tractors

T8000 Series: T8010,T8020,T8030,T8040,T8050;

TG Series: TG210,TG230,TG255,TG285;

TG II Series: TG215,TG245,TG275,TG305

Fits – John Deere 6M, 6R and 6RH Series Tractors

6M Series: 6105M,6110M,6115M,6120M,6125M,6130M,6140M,6145M,6150M,6155M,6170M,6175M,6195M;

6R Series: 6105R,6110R,6115R,6120R,6125R,6130R,6140R,6145R,6150R,6150RH,6155R,6170R,6175R, 6190R,6195R,6210R,6215R;

6RH Series: 6155RH

Fits – Challenger MT700C-MT900E Series Tractors and RoGator Combines

MT700C Series: MT745C,MT765C,MT775C;

MT700D Series:MT745D,MT755D,MT765D;

MT700E Series: MT755E,MT765E,MT775E;

MT800C Series: MT835C,MT845C,MT855C,MT865C,MT875C;

MT800E Series: MT845E,MT855E,MT865E,MT875E;

MT900C Series:MT945C, MT955C,MT965C,MT975C;

MT900E Series: MT955E,MT965E,MT975E;

RoGator Series Combines: RG700, RG700B, RG900, RG900B, RG1100, RG1100B, RG1300, RG1300B

Replaces OEM Part Numbers;

Replaces Case IH OEM Part Numbers:87539115, 87328621

Replaces John Deere OEM Part Number:AL209455

Replaces Challenger OEM Part Numbers:519438D1, 526701D1
