Description

Parameters:

• Part Number: KR5245
• Replaces Left-Hand or Right-Hand Upper Cab, Rear and/or Front Fender or Hood Light
• 2050 Effective Lumens

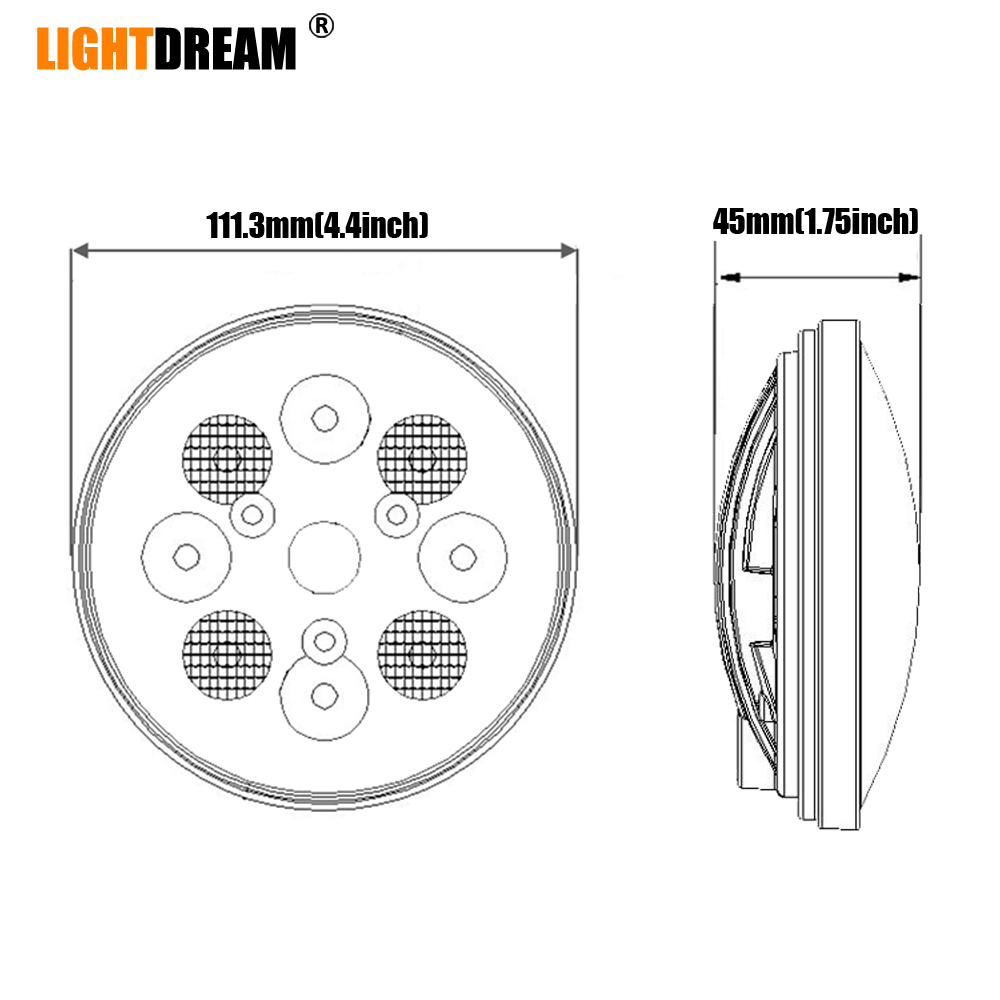

• 4.5″ Dia x 1.75″ — Round
• Flood/Spot Combo Beam – Hi/Lo Beam Pattern
• 16 Watts; 1.35 Amp Draw
• 12-Volt to 24-Volt Input Voltage ( DC 10~30V )
• Manufacturer’s Limited Lifetime Warranty — 1 Year

Fits- LED Light for the OEM Inner Spot and Outer Flood Beam Light Located on Upper Cab on John Deere combines, cotton pickers,harvesters or windrowers.

• Fits – Allis Chalmers 6000-7000 Series and Tractors
  Tractors: 160, 170, 175, 180, 185, 190, 200, 210, 6040, 7000, 7010, 7020, 7040, 7045, 7060, 7080;
  6000 Series: 6060, 6070, 6080;
  7000 Series: 7030, 7050
• Fits – Case 90 Series Tractors
  Tractors: 320B, 420B, 420DB, 480B, W8E, W9, W9E, W10E;
  90 Series: 1190, 1290,1390, 1490, 1690, 2090, 2290, 2390, 2590, 4490, 4690, 4890
• Fits – International Harvester 06-88 Series Tractors
  Tractors: 544, 656, 666, 686;
  06 Series: 706, 806, 1206;
  26 Series: 826, 1026;
  56 Series: 756, 856, 1256, 1456;
  66 Series: 766, 966, 1066, 1466, 1468, 1566,1568;
  86 Series: 786, 886, 986, 1086, 1486, 1586;
  88 Series: 3088, 3288, 3488,3688, 5088, 5288, 5488;
  30 2+2 Series: 3388, 3588, 3788
• Fits – New Holland Tractors with 4.5 ” Sealed Beam Lights
  Tractors: 233, 333, 2000, 2100, 2110, 2120, 2150, 2300, 2310, 2600, 2600N, 2600R, 2600V,
  3000, 3055, 3100, 3110, 3120, 3150, 3300, 3310, 3330, 3400, 3500, 3550, 3600, 3600N,
  3600NO, 3600R, 3600V, 3900, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500,
  4600, 4600NO, 4600O, 4600SU, 5000, 5100, 5200, 5340, 5600, 5700, 6600, 6600C, 6600O,
  6700, 6710, 7000, 7100, 7200, 7600, 7600C, 7700, 7710, 7910, 8000, 8210, 8600, 8700,
  9000, 9600, 9700; TW Series: TW5, TW10, TW15, TW20, TW25, TW30, TW35
• Fits – John Deere 10-9000 Series Tractors, Combines, Cotton Pickers and Sprayers
  Tractors: 820, 830, 920, 930, 1120, 1520, 1640, 1830, 2010, 2040S, 2120, 2130, 3130, 3030;
  Generation II Series: 1530, 2030, 2630;
  New Generation Series: 1010, 1020, 2020;
  Standard-Tread Tractors: 5010, 5020, 6030;
  Utility Tractors: 3055, 3150, 3155, 3255;
  10 Series: 2510, 3010, 4000,4010;
  20 Series: 2520, 3020, 3120, 4020, 4320, 4520, 4620;
  30 Series: 4030, 4230, 4430, 4630;
  40 Series: 4040, 4240, 4440, 4640, 4840;
  50 Series: 4050, 4250, 4450, 4650, 4850;
  55 Series: 4055, 4255, 4455, 4555, 4755, 4955;
  60 Series: 4560, 4760, 4960;
  30 4WD Series: 8430, 8630;
  40 4WD Series: 8440, 8640;
  50 4WD Series: 8450, 8650, 8850;
  60 4WD Series: 8560, 8760, 8960;
  70 4WD Series: 8570, 8770, 8870, 8970;
  1030 Series: 1030, 1130, 1630;
  2040 Series: 2040, 2140, 2240, 2440, 2640, 2840, 2940;
  2050 Series: 2150, 2350, 2550, 2750, 2950;
  2055 Series: 2155, 2255, 2355, 2355N, 2555, 2755, 2855N, 2955;
  3040 Series: 3040, 3140;
  5000 Series: 5200, 5300, 5400, 5500;
  7020 Series: 7020, 7520;
  9000 Series: 9100, 9200, 9300, 9400;
  Combines: 3300, 4400, 4420, 6600,6602, 6620, 6622, 7700, 7720, 7721, 8820;
  Cotton Pickers: 9900, 9910, 9920, 9930, 9940, 9950;
  Sprayers: 6100, 6500, 6600, 6700
• Fits – Massey Ferguson Tractors
  Tractors: 10, 20, 30, 31, 40, 50, 60, 70, 80, 135, 150, 165, 175, 180, 230, 240, 245, 250,
  255, 270, 275, 285, 290, 298, 1080, 1085, 1100, 1105, 1130, 1135, 1150, 1155, 1500,
  1505, 1800, 1805, 2640, 2675, 2705, 2745, 2775, 2805, 3505, 3525, 3545

Replaces OEM Part Numbers;

• Replaces John Deere OEM Part Numbers :AR48723, AR85263, AR85264, AR93335, RE10962, RE10963,
  RE19081, RE19082
• Replaces Case OEM Part Numbers :A11280, D71409, D70115, 373662R1, 373662R91
• Replaces Allis Chalmers OEM Part Number :70239804
• Replaces International Harvester OEM Part Number: 131203C1
